221 Photos

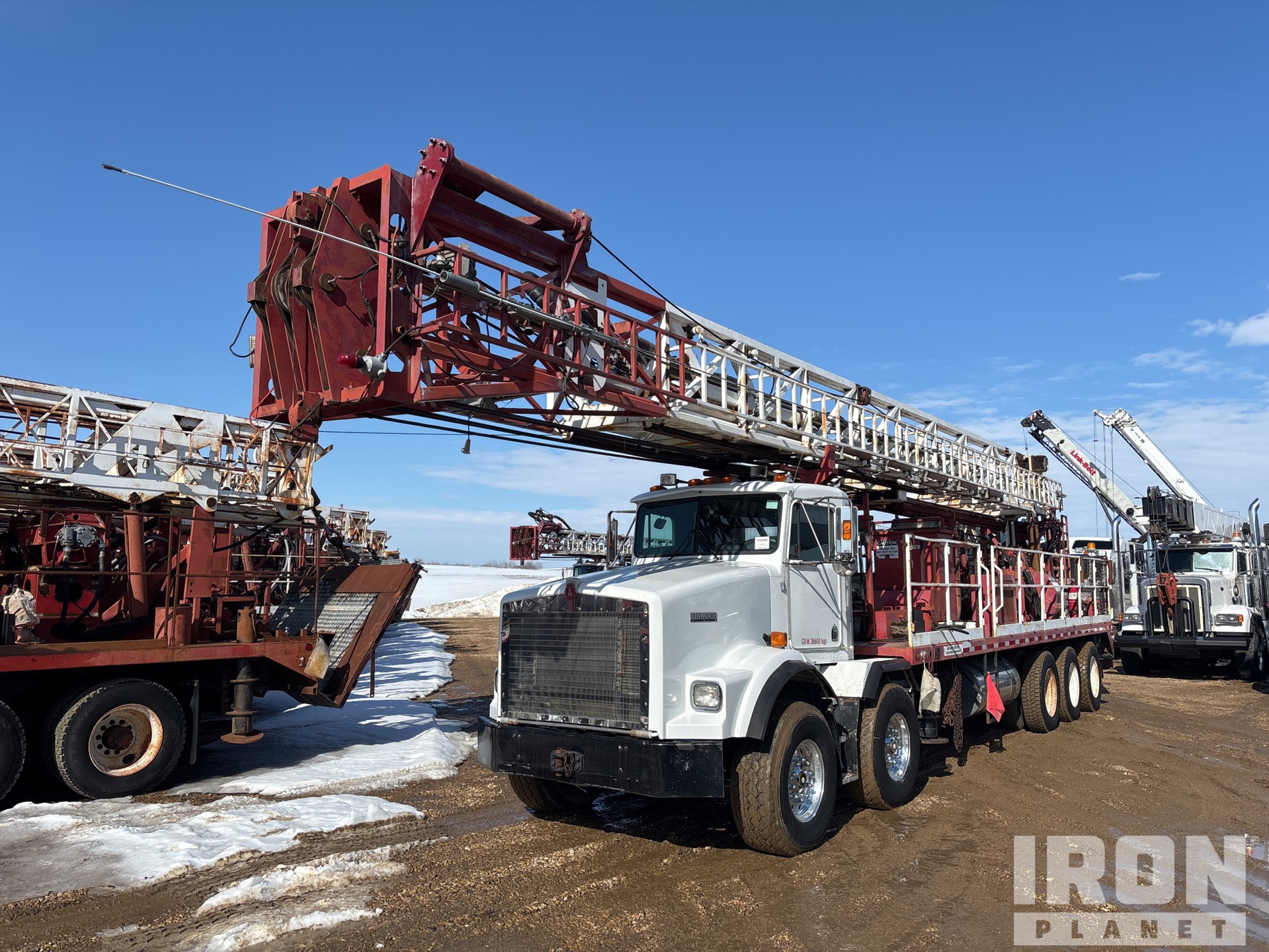

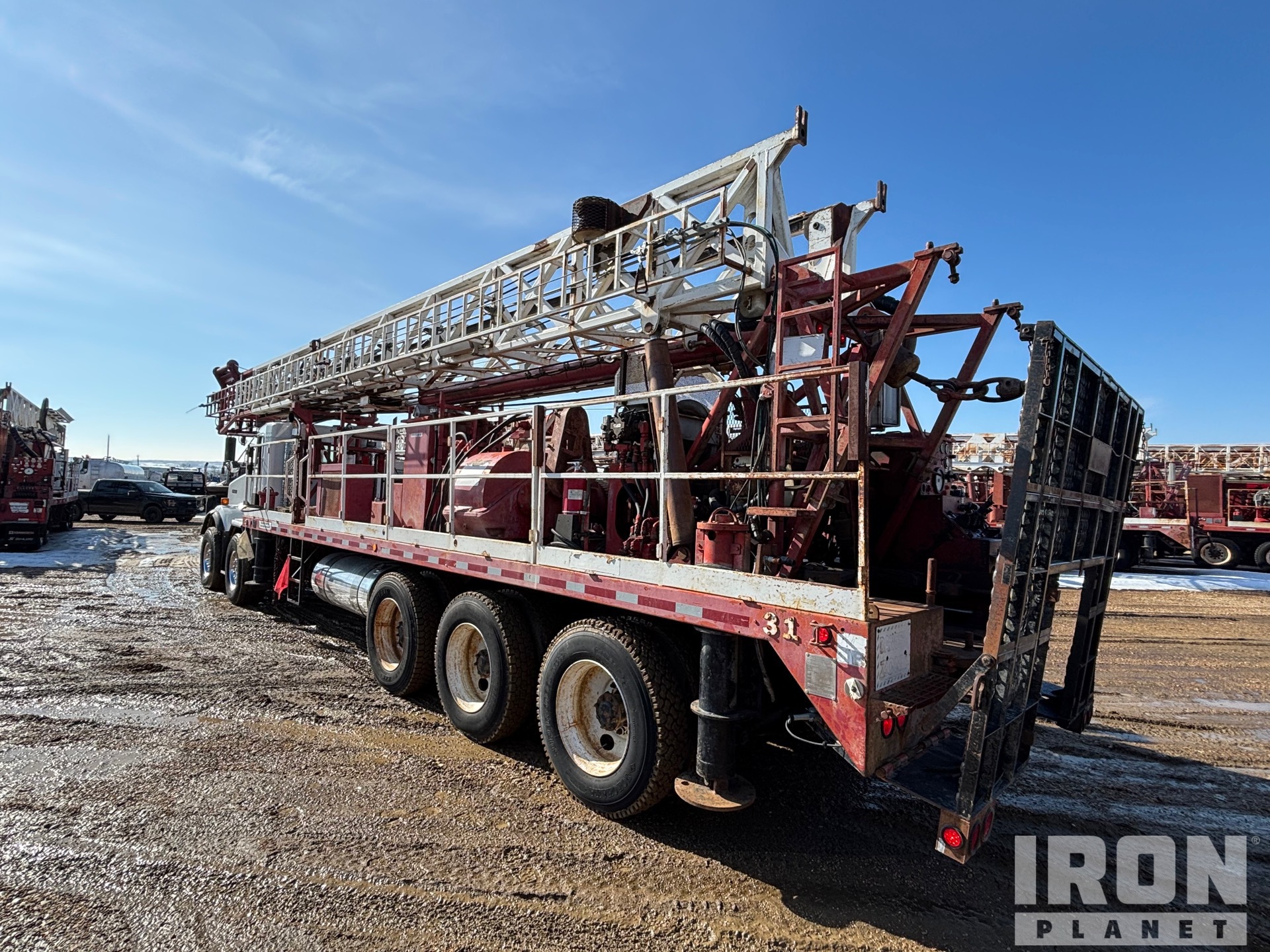

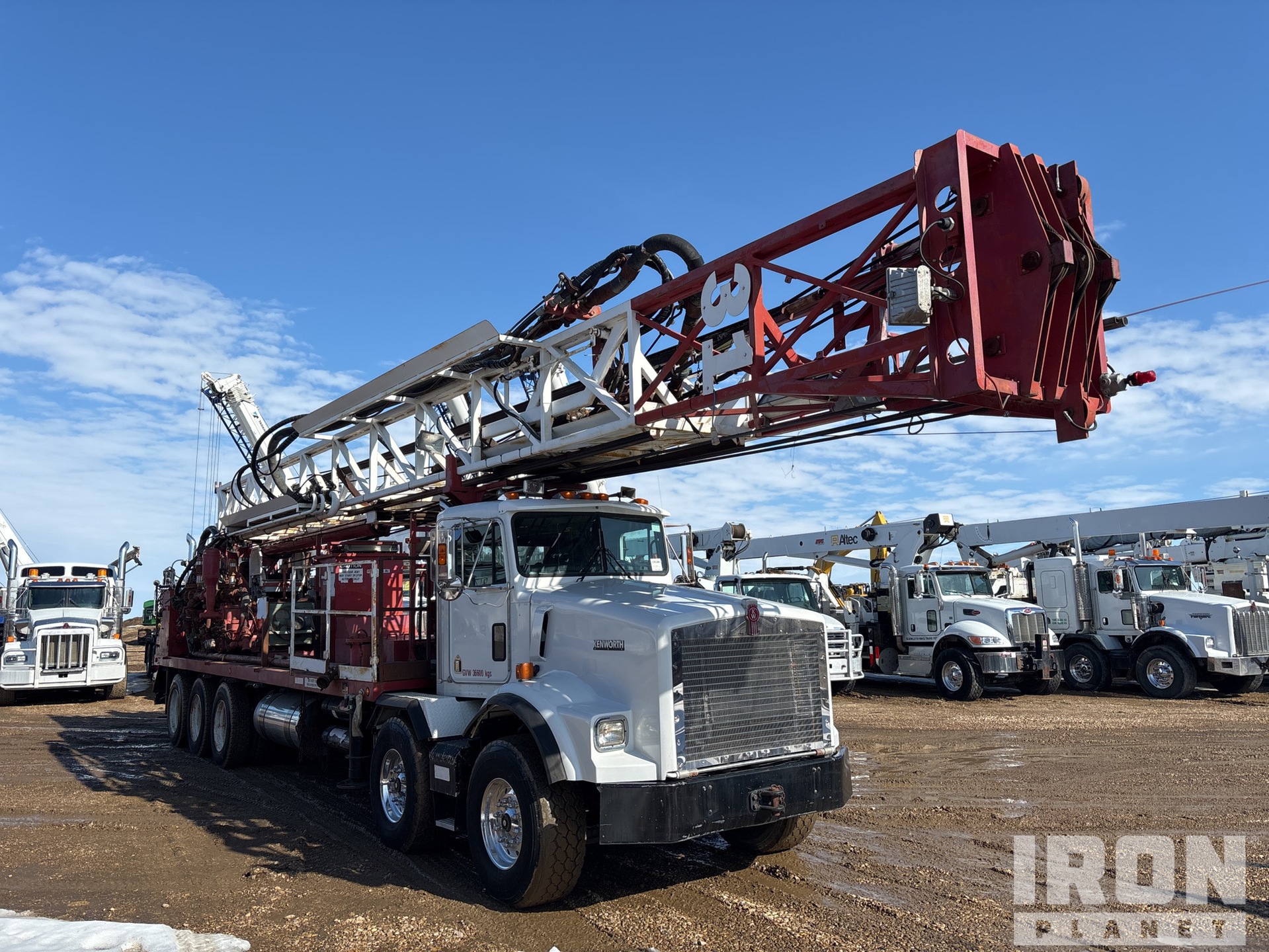

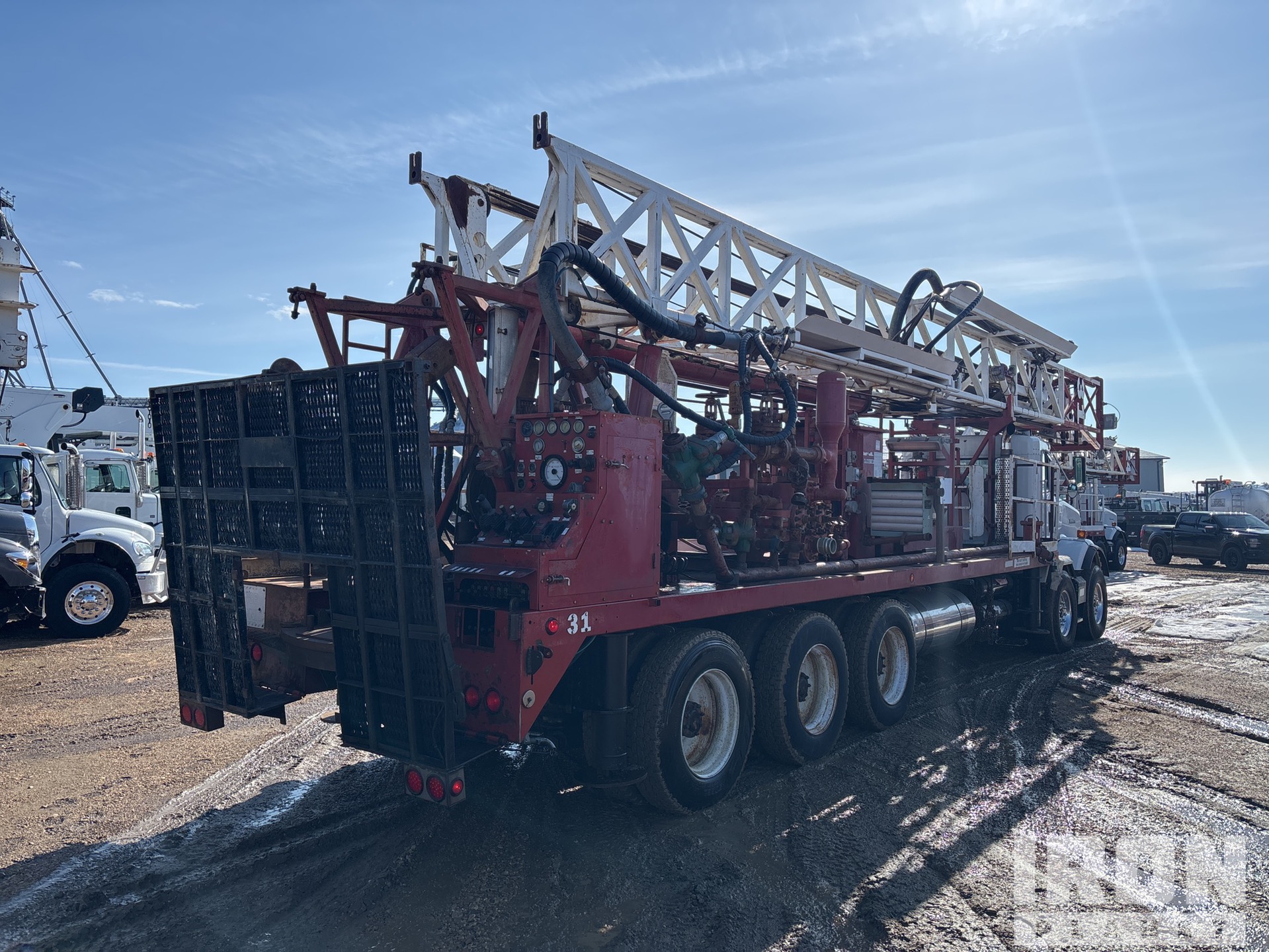

2003 Cora Lynn Drilling on 2004 Kenworth T800B Wide Hood 10x6 Twin-Steer Drill Truck
Located
Pickardville, AB, CAN
Pickardville, AB, CAN
Usage
31,474 km
31,474 km
Serial number
1NKDXBTX84R973533
1NKDXBTX84R973533
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14954906
In yard
No
Features
PTO Driven, Mud Drill, Winch, Straight Down Outriggers, Rear Outriggers, Cat C15 6 Cylinder 14.6 L Diesel 525 hp Engine, 2003 US EPA Label, CARB Compliant, Positive Air Shutoff, 17134 Engine hrs, Cruise Control, Engine Brake, Eaton Fuller RTLO-16918B 18-Speed Manual Transmission, Double Differential Locks, 37500 lb Front Axle, 57999 lb Rears, Dana TDS583P Drive Axles, 4.56:1 Axle Ratio, 95500 lb GVWR, Aluminum Wheels, 425/65R22.5 Front Tires, 11R24.5 Rear Tires, Dual Steering Boxes, Double Frame, Neway AD Series Air Ride Suspension, 310 in Wheelbase, PTO, Wet Kit, Hydraulic Ram Drawworks, Cora Lynn Drilling Driller's Control Console, Range 3 30,000lb single line pull 60,000lb double line pull 6,000 lb torque on top drive. PTO DRIVEN, MUD DRILL, WINCH, STRAIGHT DOWN OUTRIGGERS, REAR OUTRIGGERS, CAT C15 MBN 18-SPEED MANUAL TRANSMISSION, FULL 6WAY LOCKERS 37500 LB FRONT AXLE, 69,000LB REAR AXLES 58000 LB SUSPENSION SPICER TDS583P DRIVE AXLES, 4.56:1 AXLE RATIO, 425/65R22.5 FRONT TIRES, 11R24.5 REAR DUAL STEERING BOXES, DOUBLE FRAME, NEWAY AD SERIES AIR RIDE SUSPENSION, 310 IN WHEELBASE, 46.5 FT DERRICK, HYD RAM RIG, 85,000 LBS CAPACITY, 5,000 FT-LBS TORQUE, GARDNER-DENVER FX DUPLEX PUMP Chassis Engine: Cat C15 6NZ 18 speed
General Appearance
Serial Number / VIN
1NKDXBTX84R973533
Hour Meter / Odometer
31474 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet metal (fiberglass) condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights Functional
Some not operational, Front Driver Side Marker lights are not operational
Engine
Emissions Status
2003 US EPA Label, CARB Compliant
Starter
Operational
Injector pump
Operational
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Limited Function Check
The engine started and ran.
Cab
Engine Hours
17134 Engine hrs
Mirrors
Seats/armrests
Seat belts
Operational
Steering Controls
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. ~47 PSI Gauge inoperable
Engine Warning Lights
Operational, Check engine light and stop engine light come on when PTO is engaged
Gauges
Operational, Not operationally checked
Engine Brake
Operational
Clutch
Engages
Air Conditioner
Not operationally checked, Belt missing
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational, Air operated
Frame Condition
Front Axle
Center Axle
Rear Axle
Suspension Bushings
Air Bags
Wheel Condition
Wheel Studs
Wet Kit Plumbing
Not operationally checked
Hydraulic Tank
Control Station - Crane Lattice Boom
Controls Hydraulic or Air
Load Charts
Posted on cab wall, Rear driver side frame
Oil Pressure
Gauge inoperable
Gauges
Not operationally checked
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Not operationally checked
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Limited Function Check
The main chassis components could not be operated.
Additional information
