97 Photos
1999 Terex RT230 30 ton 4x4 Rough Terrain Crane
Located
Long beach, CA
Usage
610 hrs
Serial number
11261
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#13948682
In yard
No
Year
1999
Manufacturer
Model
Asset type
Serial number or VIN
11261
Features
Anti Two-Block, Greer RCI 510 Load Moment Indicator, Cummins Diesel Engine, 30 ft Minimum 94 ft Maximum Boom Length, 26 ft to 43 ft Extendable Swingaway Offset Jib, 659 lb 30 ton Capacity 3 Sheave Hook Block, Overhaul Ball
General Appearance

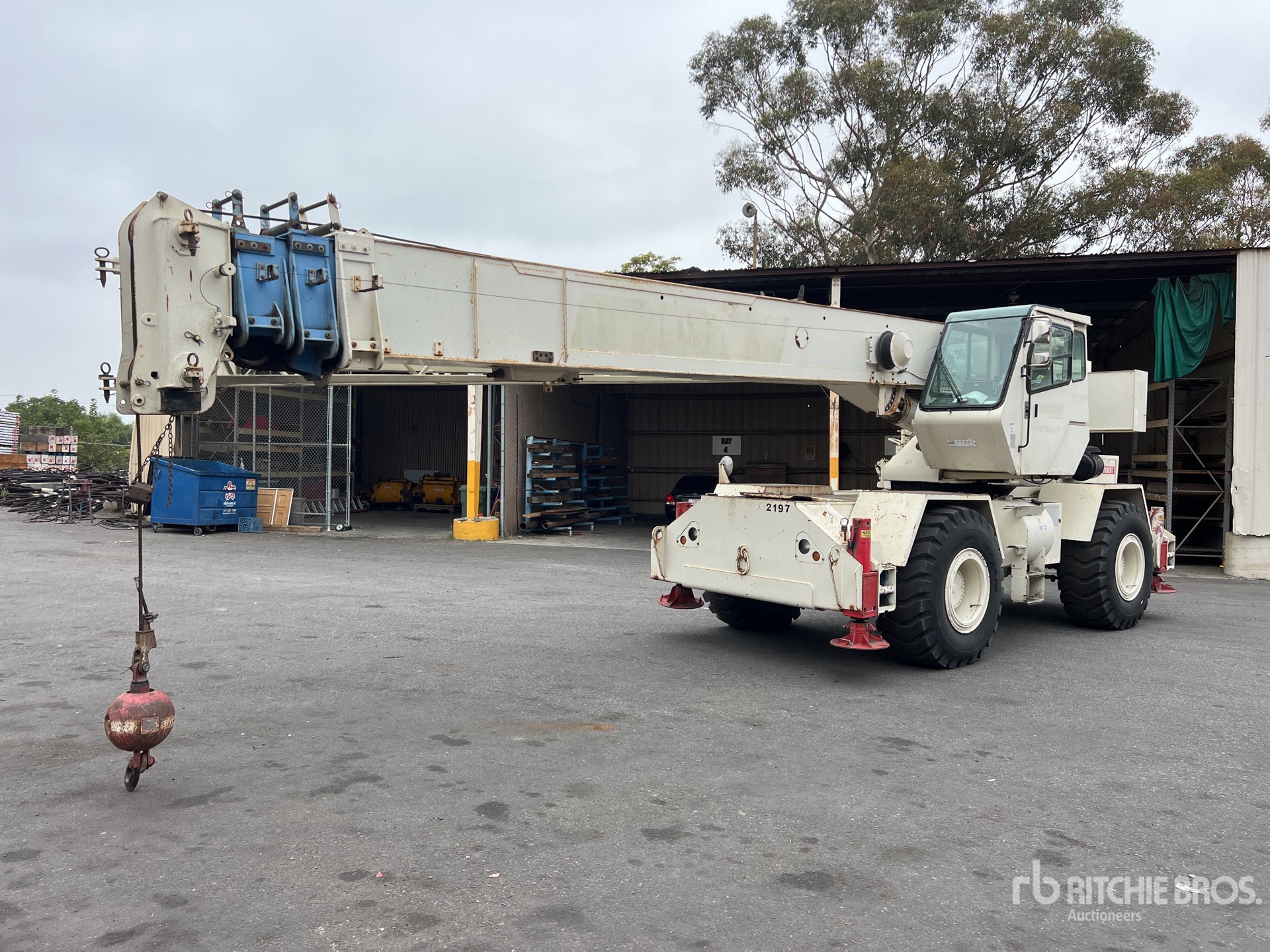

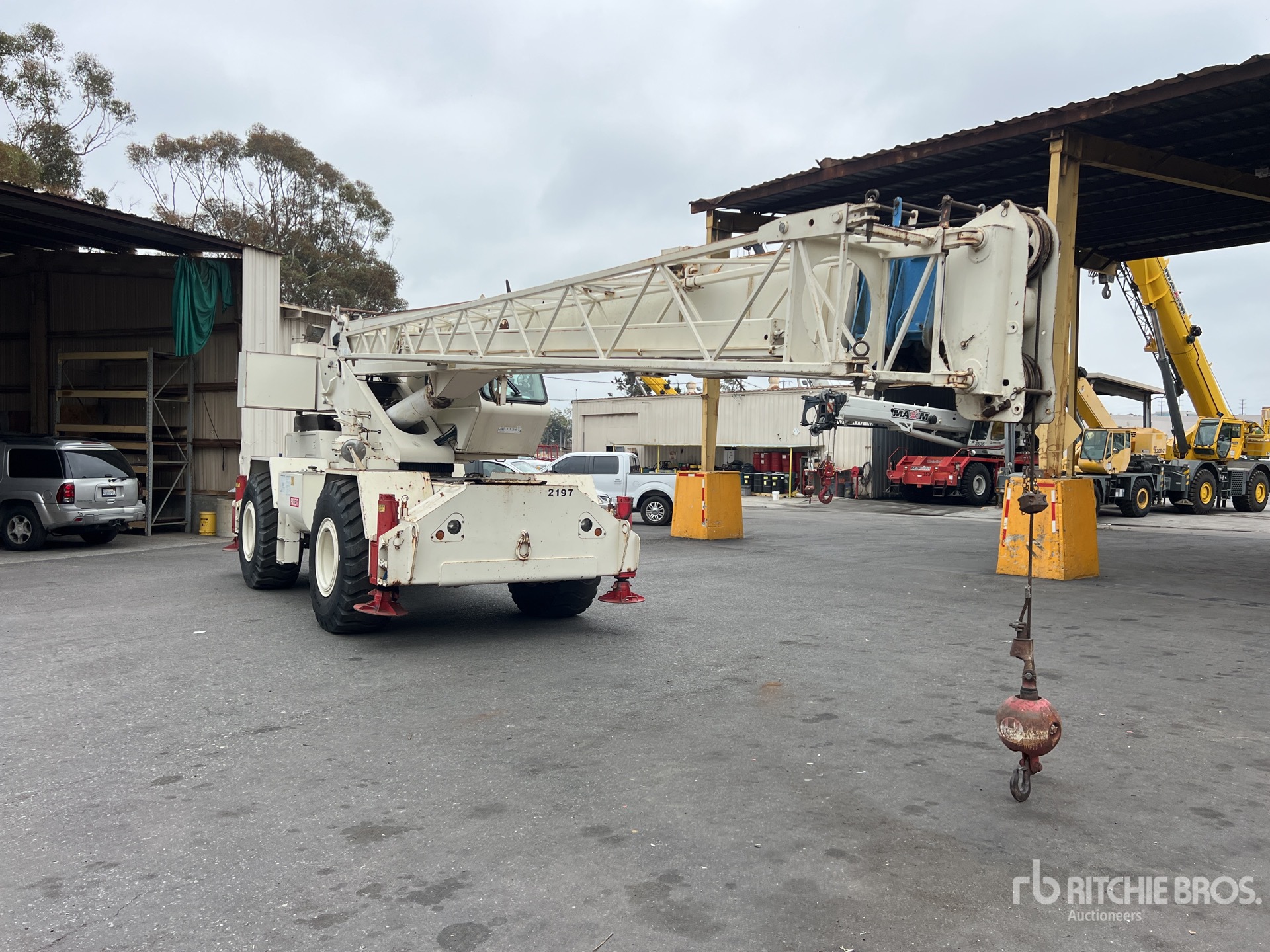

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

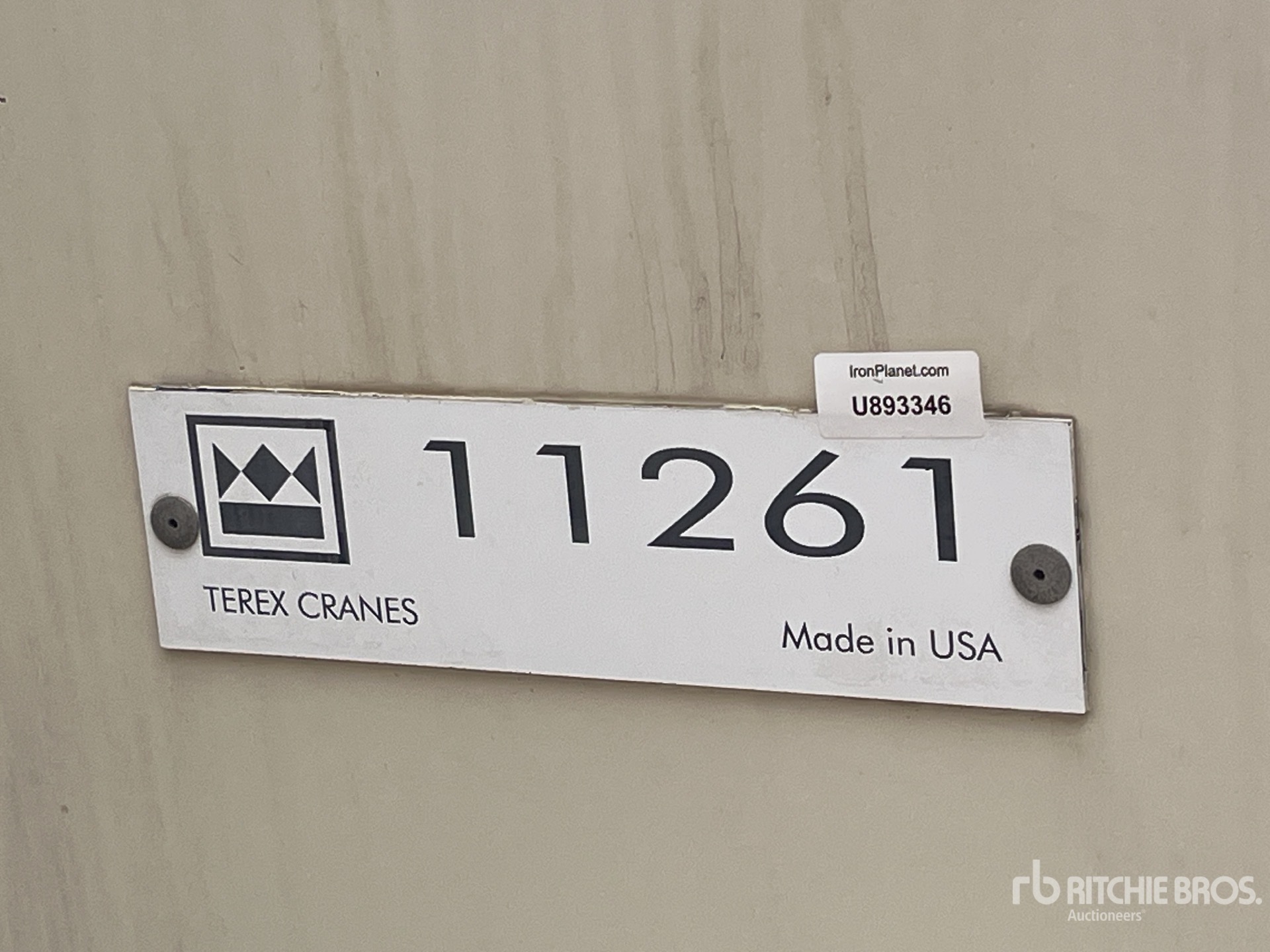

Serial Number / VIN
11261
CE Mark
No CE mark found
Hour Meter / Odometer
610 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet metal (fiberglass) condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights Functional
Not operational
Safety Certification Label
There is a safety certification label with a date of 11/21
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Control Station
Mirrors
Glass
No visible damage
Seats/armrests
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Powertrain controls
Oil Pressure
The gauge registers in the operating range.
Engine Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Front Axle
Front Axle Oscillating Pin Wear
Rear axle oscillating beam
Rear Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turn-table Bearing
Frame Condition
Tire Size
All of the tires are the same size, 20.5-25 Front tires, 20.5-25 Rear tires, LF Maxam, LR Maxam, RR Maxam, RF Maxam
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Stabilizer Cylinders
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Boom Extension
Not operationally checked
Main Load Block
Overhaul Ball
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Jun 20, 2025 | Jun 20, 2025 |
| Silicon | 38.68 PPM | 1.06 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 16.36 PPM | 0.25 PPM |
| Chromium | 5.06 PPM | 0 PPM |
| Lead | 0.5 PPM | 0.05 PPM |
| Copper | 65.07 PPM | 2.77 PPM |
| Nickel | 5.82 PPM | 0.02 PPM |
| Iron | 147.17 PPM | 3.6 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
