127 Photos
2006 Peterbilt 335 12x4 Five Axle Dump Truck
Located
Phoenix, AZ
Phoenix, AZ
Usage
328,363 mi
328,363 mi
Serial number
2NPLLD0X16M891896
2NPLLD0X16M891896
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15318571
In yard
No
Features
Cat C7 6 Cylinder Diesel Engine, 17041 Engine hrs, Air Conditioner, Cruise Control, Exhaust Brake, Eaton Fuller RTO-1908LL 8LL Manual Transmission, 20000 lb Front Axle, 40000 lb Rears, Dana DSP41 Drive Axles, 4.63:1 Axle Ratio, 60000 lb GVWR, Air Ride Cab, Aluminum Wheels, 315/80R22.5 Front Tires, 11R22.5 Rear Tires, 3 Air Lift Pusher Axles, Air Leaf Air Ride Suspension, 268 in Wheelbase, PTO, 17 ft Long x 48 ft High Steel Body, Round Bottom, Electric Roll Tarp

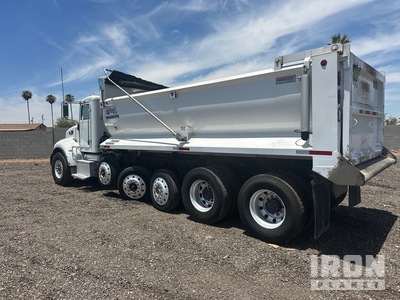

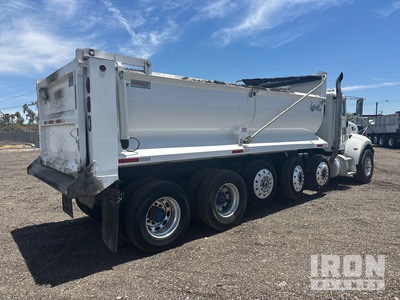

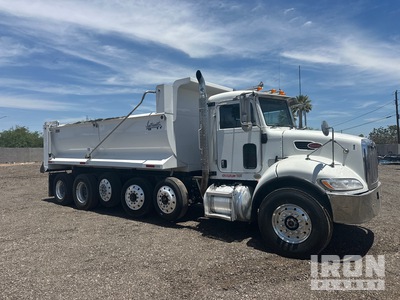

General Appearance
Serial Number / VIN
2NPLLD0X16M891896
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
328363 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet metal (fiberglass) condition
Steps/Ladders
Damaged bottom left and right entry steps
Hand Rails
Glass
Exterior Lights Functional
Operational
Brakes / Tires**
Steer Axle
- 16/32" Aluminum
- Drum
- Drum
- 24/32" Aluminum
Rear Axle
- /32"
- 0/32" Aluminum
- N/A
- N/A
- 15/32" Aluminum
- /32"
Rear Axle
- /32"
- 15/32" Aluminum
- Drum
- Drum
- 12/32" Aluminum
- /32"
Rear Axle
- /32"
- 11/32" Aluminum
- Drum
- Drum
- 11/32" Aluminum
- /32"
Rear Axle
- 15/32" Aluminum
- 14/32" Aluminum
- Drum
- Drum
- 23/32" Aluminum
- 23/32" Aluminum
Rear Axle
- 13/32" Aluminum
- 12/32" Aluminum
- Drum
- Drum
- 11/32" Aluminum
- 9/32" Aluminum
Engine
Emissions Status
No US EPA Label Present
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Slow to build air, Audible air leaks after shut-down
Injector pump
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran.
Cab
Engine Hours
17041 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat belts
Operational
Steering Controls
Horn
Air horn inoperable, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Engine Warning Lights
Inoperable
Gauges
Operational, Tachometer gauge inoperable
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Air engaged, Operational
ECM Miles
Unable to get ECM reading
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational, Wet
Power Take Off
Operational, Air operated
PTO Pump
Operational, Dripping leak
Non-Driven Drop Axle (1)
Non-Driven Drop Axle (2)
Front Axle
Rear Axle
Limited Function Check
The drivetrain was operational.
Cab Suspension Air Bags
Frame Condition
Suspension Springs/Hangers
Suspension Bushings
Air Bags
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system could not be operationally checked.
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Configuration
Skip
Tailgate
Tailgate Latch
Air operated, Not operationally checked
Support Frame
Hinge Points
Tarp
Electric Tarp
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jun 26, 2026 |
| Silicon | 0 PPM |
| Tin | 0.95 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0.22 PPM |
| Lead | 1.63 PPM |
| Copper | 0.7 PPM |
| Nickel | 0 PPM |
| Iron | 10.25 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | >5% |
