104 Photos

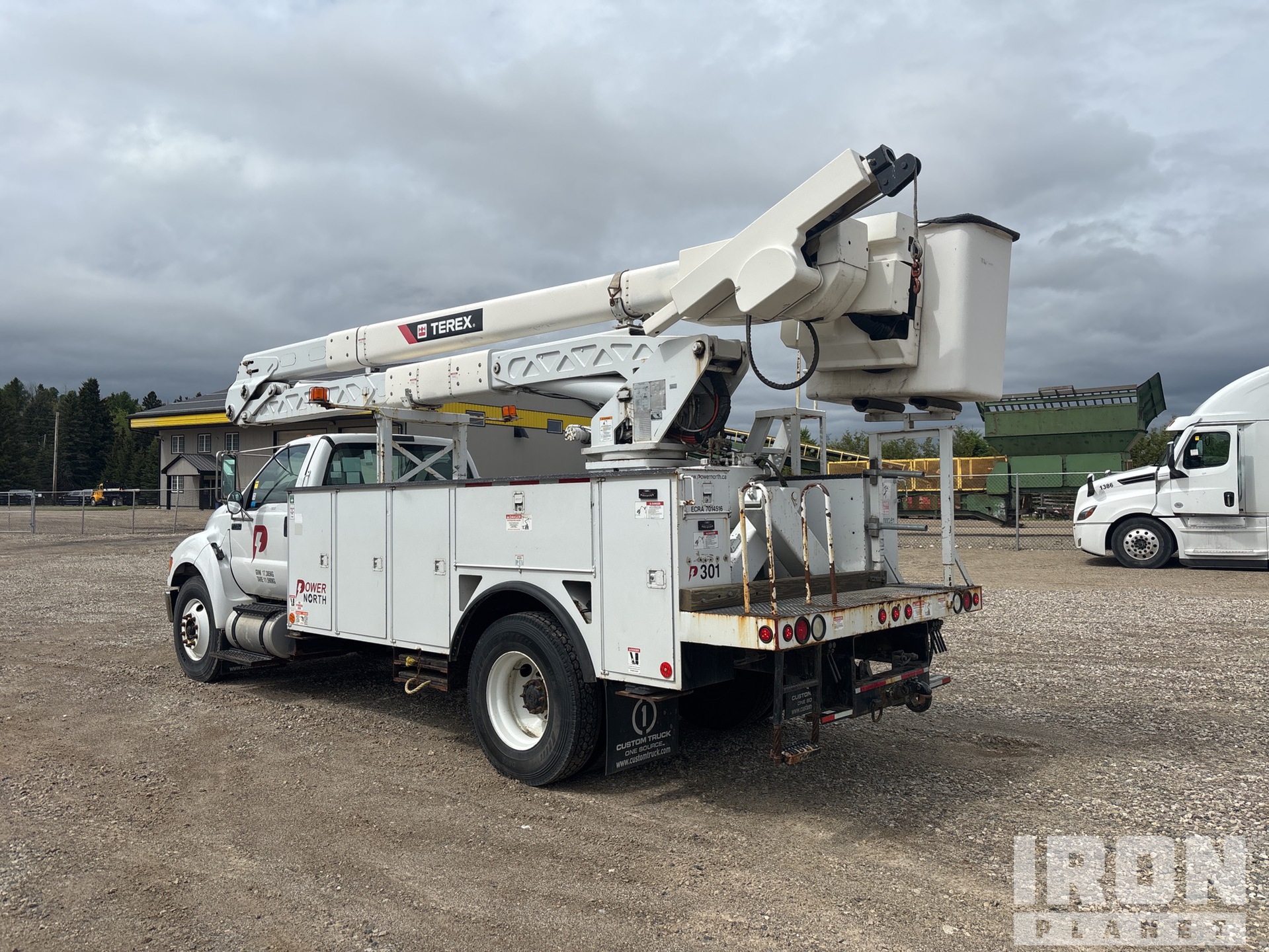

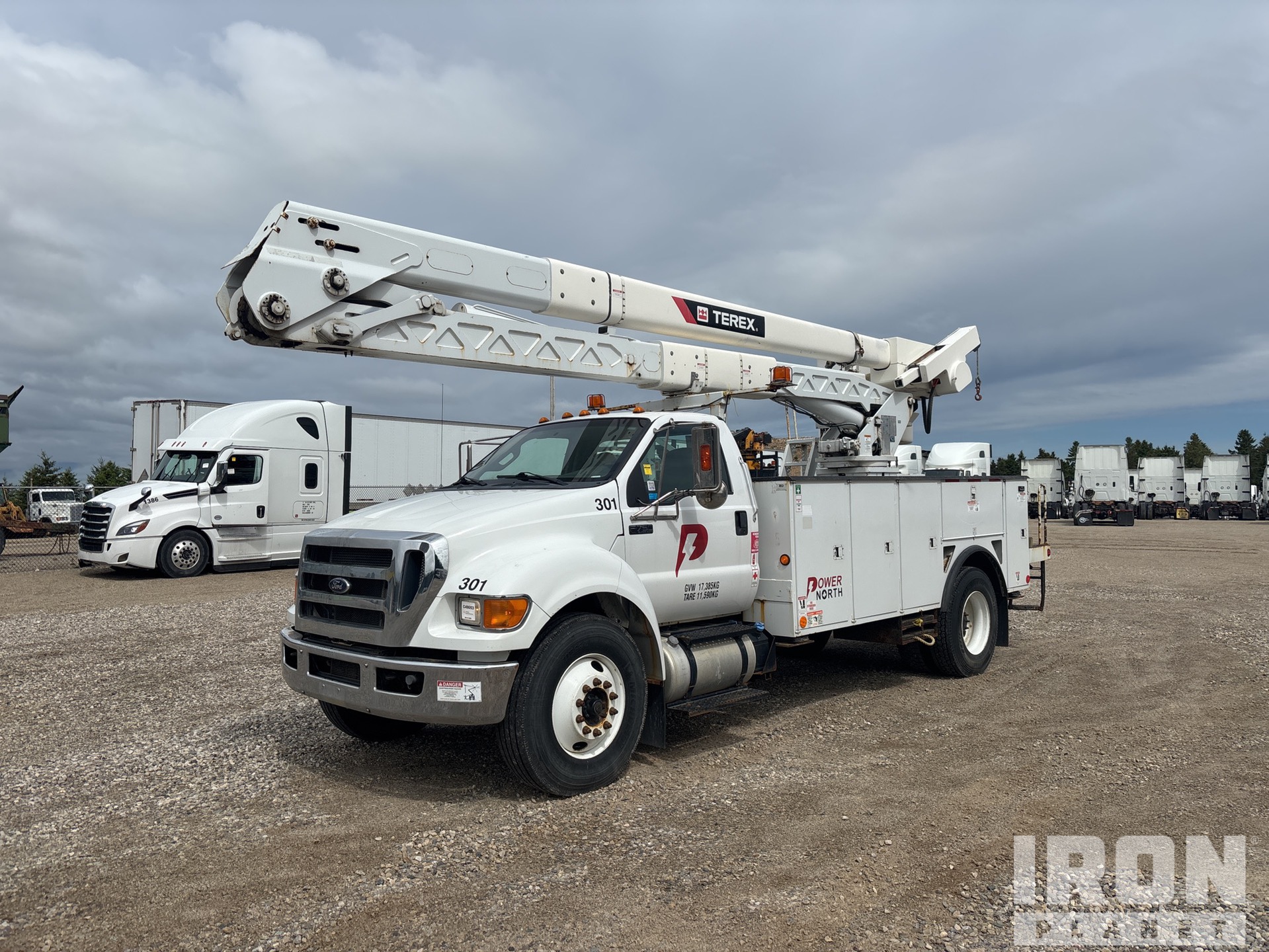

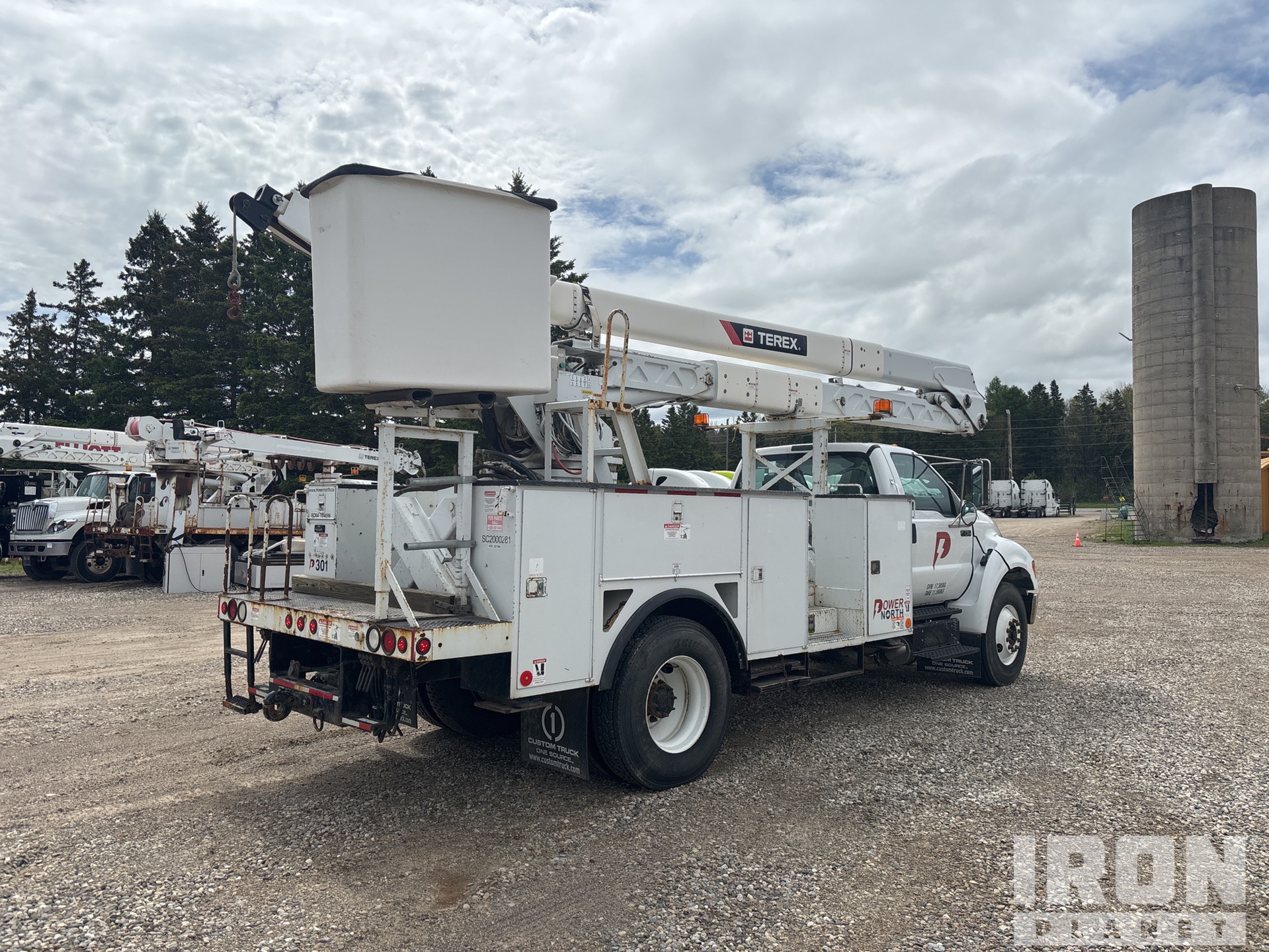

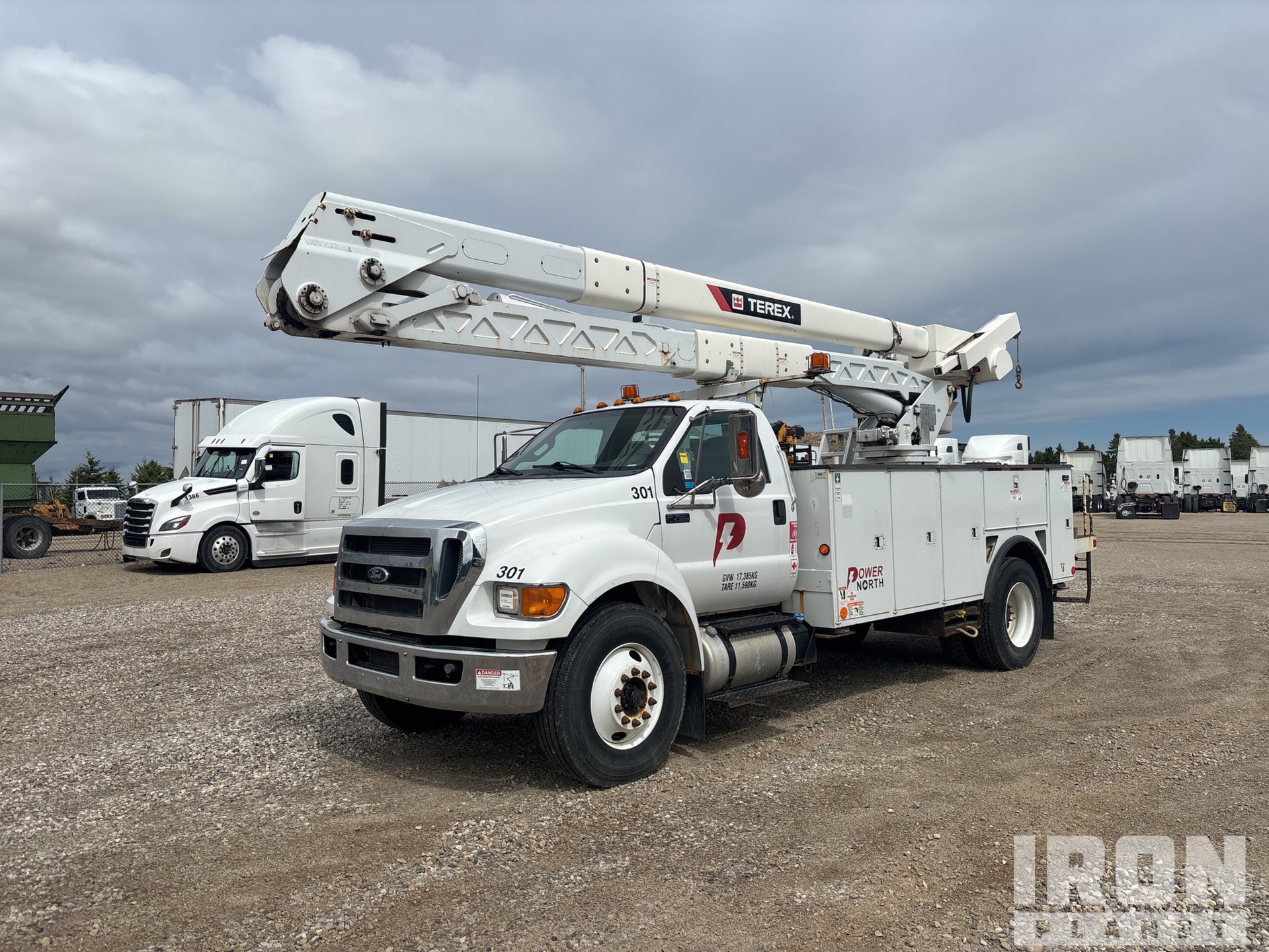

2012 Terex Hi-Ranger TCX-55 55 ft on 2015 Ford F-750 XL 4x2 Bucket Truck
Located
Grand Valley, ON, CAN
Grand Valley, ON, CAN
Usage
115,328 km (71,662 mi)
115,328 km (71,662 mi)
Serial number
3FRXF7FK1FV640008
3FRXF7FK1FV640008
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15161636
In yard
No
Features
Cummins ISB 6 Cylinder 6.7 L Diesel 260 hp Engine, 2014 US EPA Label, CARB Compliant, 5898 Engine hrs, Allison Automatic Transmission, 13200 lb Front Axle, 21000 lb Rears, 33000 lb GVWR, 11R22.5, Spring Suspension, 194 in Wheelbase, PTO, 700 lb Capacity, Rear Mounted, Insulated Two-Person Articulated Boom, Utility Body, Boom Tip Mounted Winch, Material Handling Jib, A-Outriggers, Rear Outriggers, 14 ft x 94 in Bed, Pintle Hitch
General Appearance
Featured Photo
Serial Number / VIN
3FRXF7FK1FV640008
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
115328 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet metal (fiberglass) condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights Functional
Operational
Engine
Emissions Status
2014 US EPA Label, CARB Compliant
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Injector pump
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
After jump starting, the engine ran.
Cab
Engine Hours
5898 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat belts
Operational
Steering Controls
Horn
Air horn operational, Electric horn operational
Oil Pressure
19.1 PSI
Engine Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
PTO Control
Operational
ECM Miles
71473 ECM mi
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Transmission
Drive Shaft
Power Take Off
Operational
Steer Axle
Rear Axle
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Boom Lift Cylinder
Secondary Boom Cylinder
Stabilizer Cylinders
Cylinders
Auxiliary Hydraulic Plumbing
Not operationally checked
Limited Function Check
The hydraulic system was operational.
Configuration
Skip
Support Frame
Limited Function Check
The main chassis components were operational in a limited check.
Tool / Work Box
Painted to match body
Steering Linkage
Brake Type
Air brakes
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Bushings
External Electrical / Air Connections
Not operationally checked
Frame Condition
Wheel Condition
Wheel Studs
Dielectric Certification
There is a Dielectric Certification label with an expiration date of 10/07/21
Turn-table Bearing
Boom Condition
JIB Condition
Work Bucket
Hydraulic Controls
Oil Sample Analysis
Oil Sample Analysis
| hydraulic | |
|---|---|
| Aluminum | 0 PPM |
| Chromium | 0 PPM |
| Copper | 0.98 PPM |
| date of analysis | Jun 24, 2025 |
| Fuel | N/A |
| Glycol | N/A |
| Iron | 3.21 PPM |
| Lead | 0 PPM |
| Nickel | 0.29 PPM |
| Silicon | 0.41 PPM |
| Silver | 0 PPM |
| Tin | 0 PPM |
| Water | N/A |
