141 Photos
2013 Vogele Vision 52002i Track Asphalt Paver
Located
San Jose, CA
San Jose, CA
Serial number
09740094
09740094
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15903522
In yard
No
Features
Dual Controls, Vogele 18AB 10 ft 6 in - 20 ft 6 in Screed, Truck Hitch, On Board Generator, Laser Sensors, 16 in Rubber Tracks

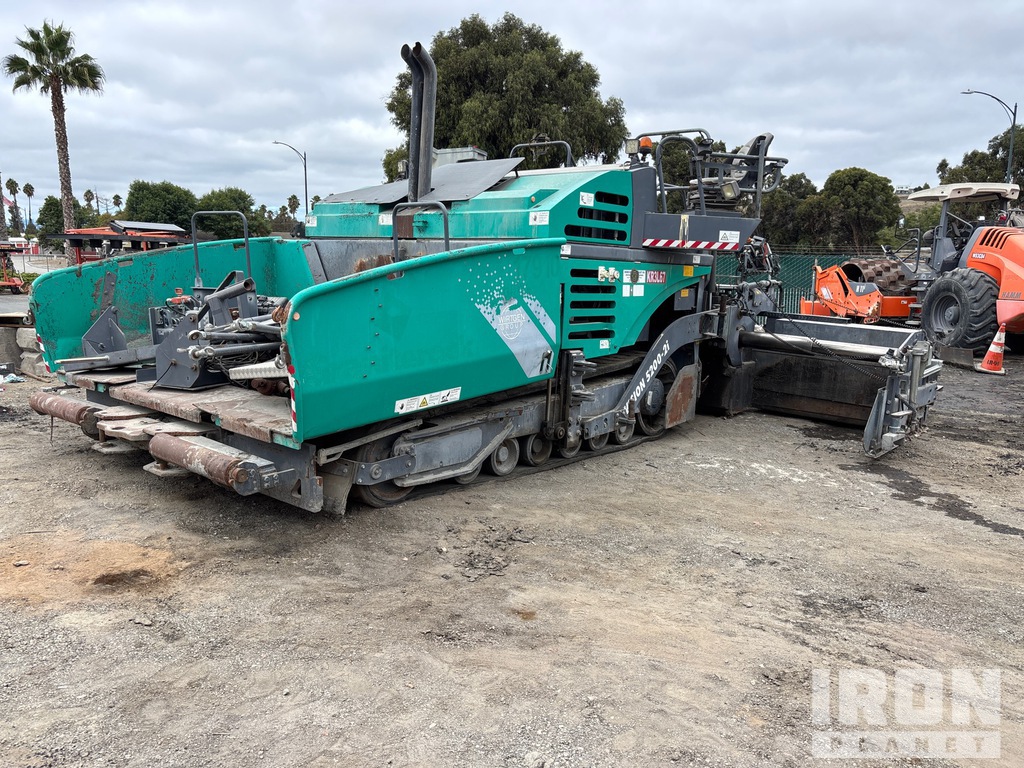

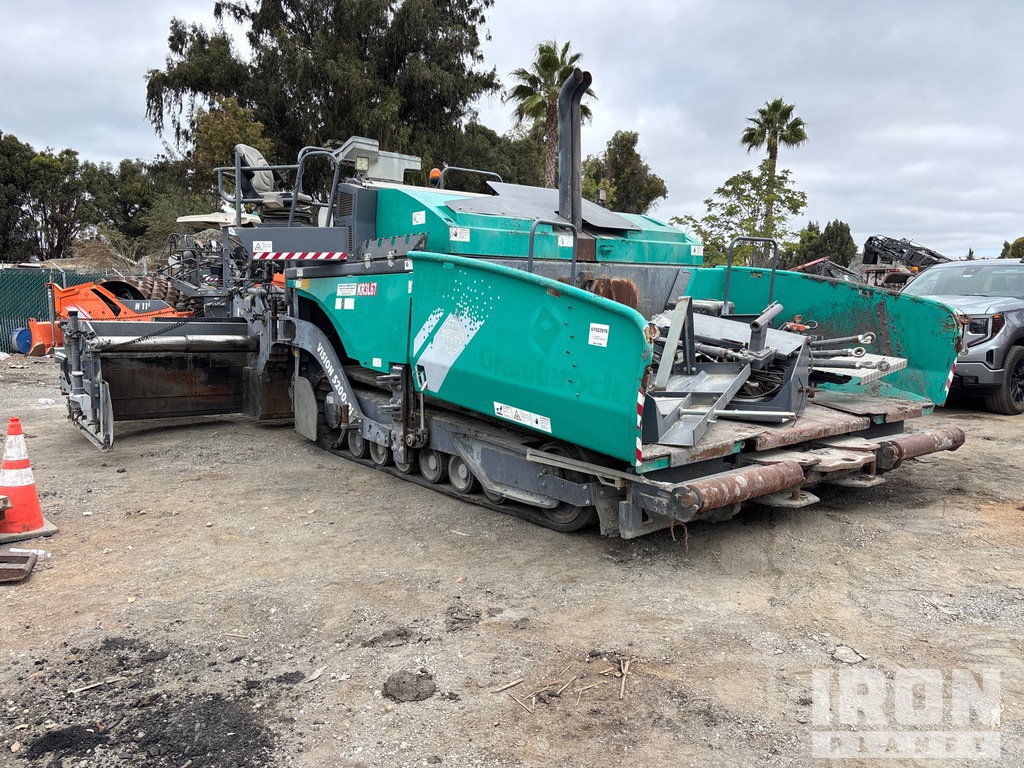

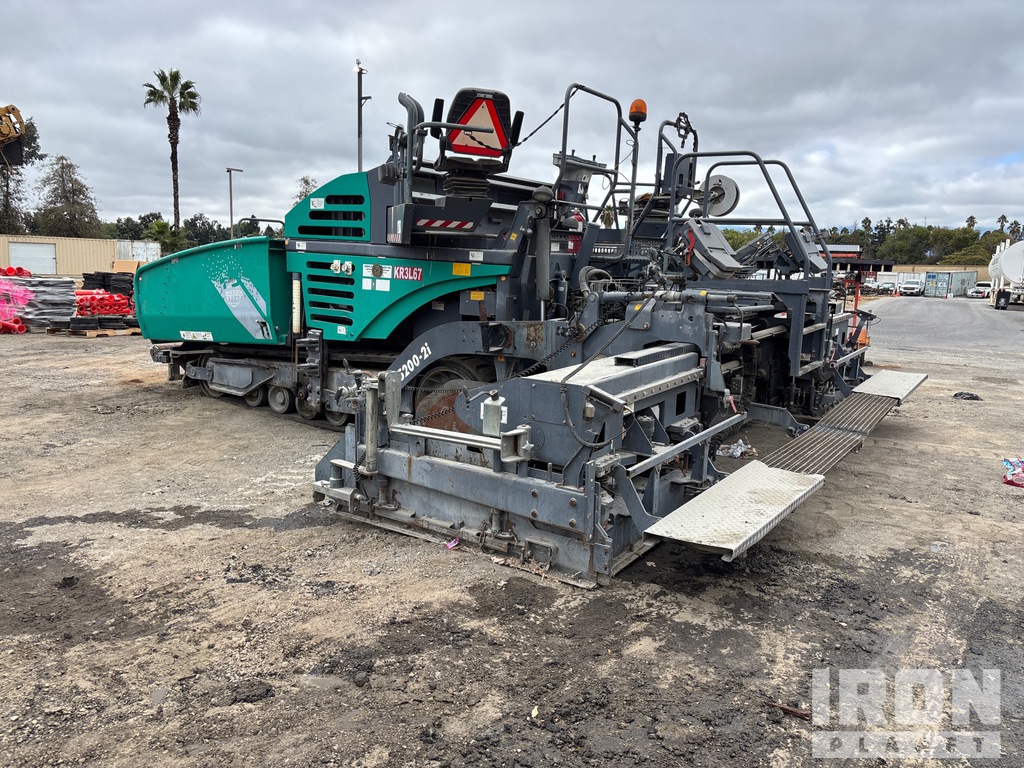

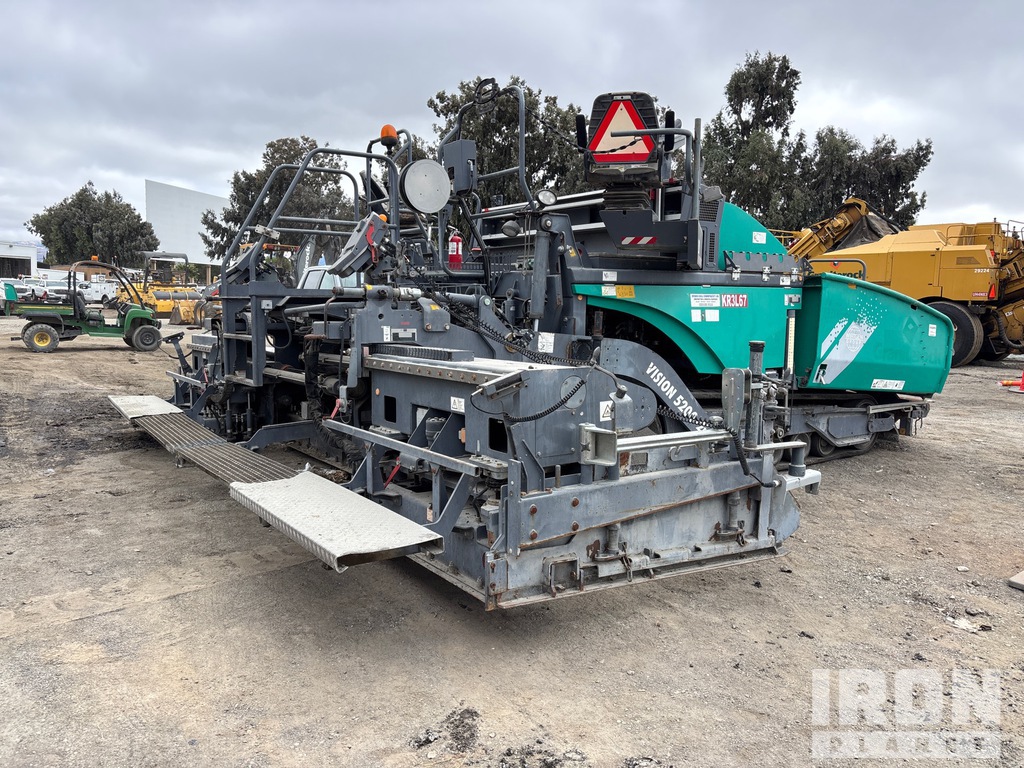

General Appearance
Serial Number / VIN
09740094
CE Mark
No CE mark found
Hour Meter / Odometer
Meter reading could not be obtained-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet metal (fiberglass) condition
Steps/Ladders
Hand Rails
Exterior Lights Functional
Operational
Safety
Horn
Operational
Seat belts
Operational
Safety lock out/stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/armrests
Hydraulic Controls
Steering Controls
Powertrain controls
Oil Pressure
Could not be operationally checked
Engine Warning Lights
Could not be operationally checked
Screed Control Switches
Operational
Gauges
Could not be operationally checked
Limited Function Check
The main components are in place and operational as noted. Unable to see screen
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
Video capture could not be performed
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Drivetrain
Transmission
Operational
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hydraulic Motors
Hoses (Hydraulics)
Hopper Wing Cylinders
Screed Tow Point Cylinders
Screed Lift Cylinders
Screed Extension Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Screed Serial Number
Serial Number: 18AB0017
Screed Lift Arms
Screed Bottom Plate / Mat
Hopper Wings
Auger/ Screw Condition
Feed Conveyors
Conveyor Drive Chains and Sprockets
Truck Hitch
Mat Thickness Adjusters
Not operationally checked
Extension Tubes
End Gates
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Track Links
Left Track Rollers
Left Idler
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Track Links
Right Track Rollers
Right Idler
