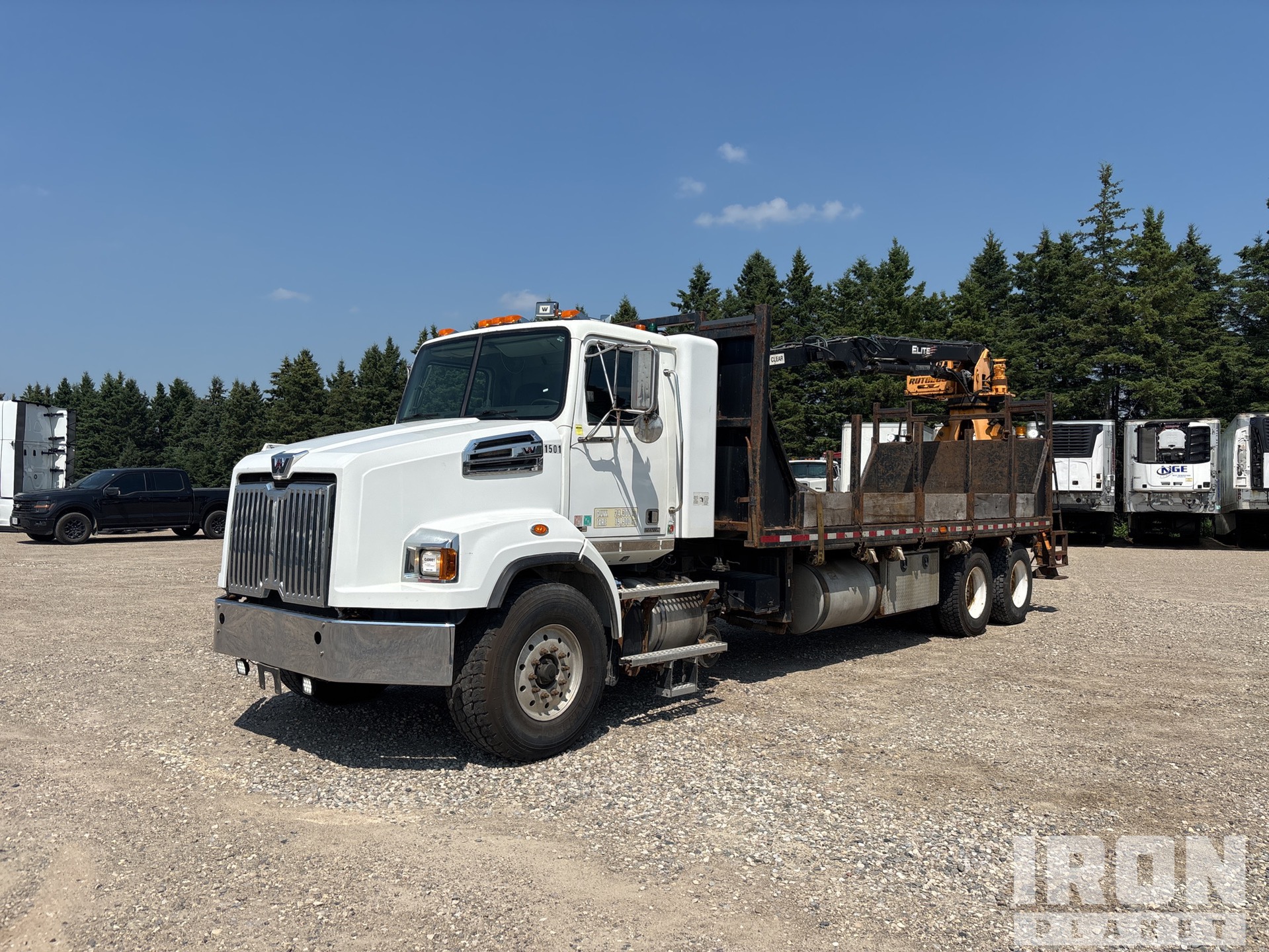

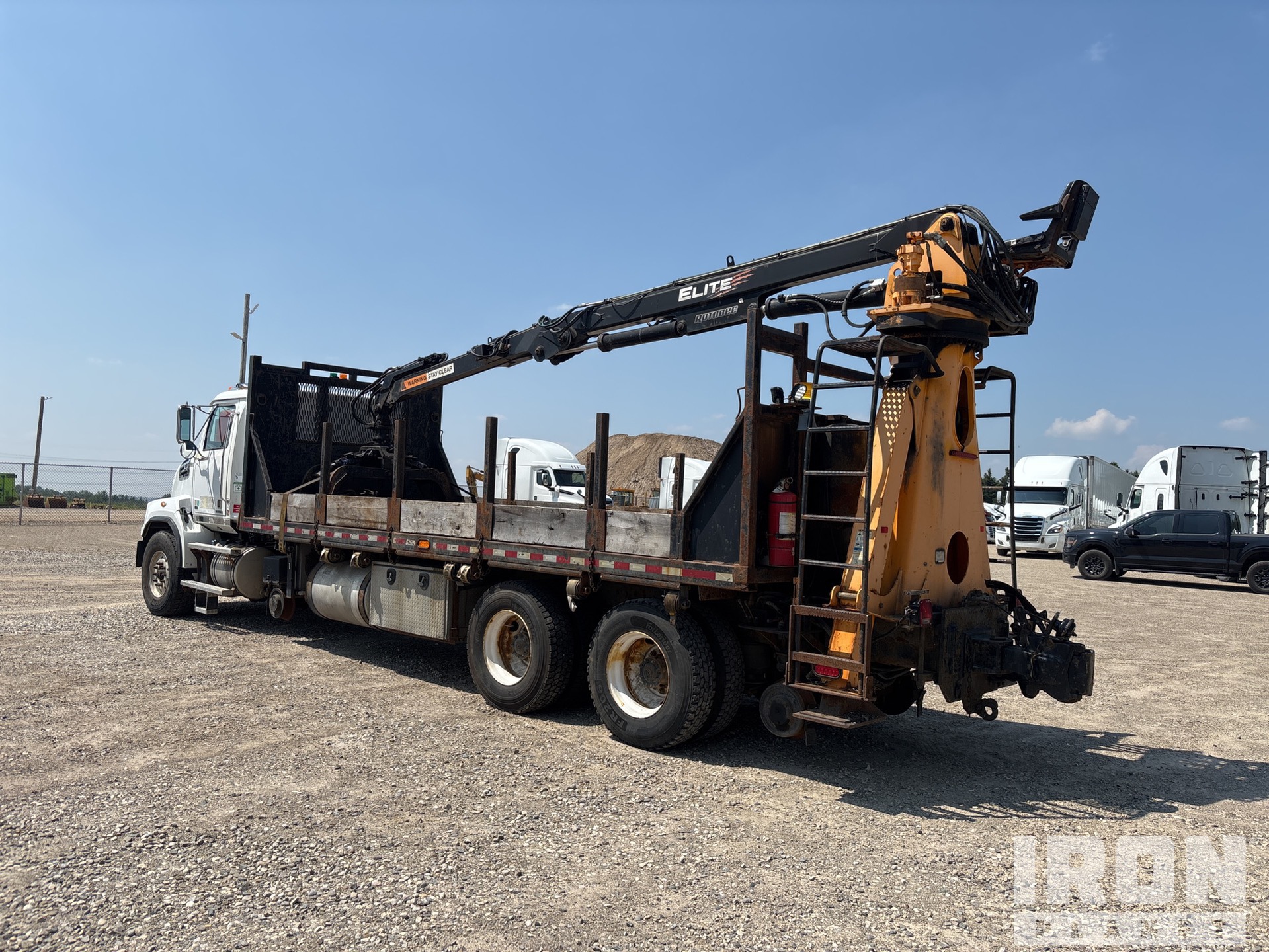

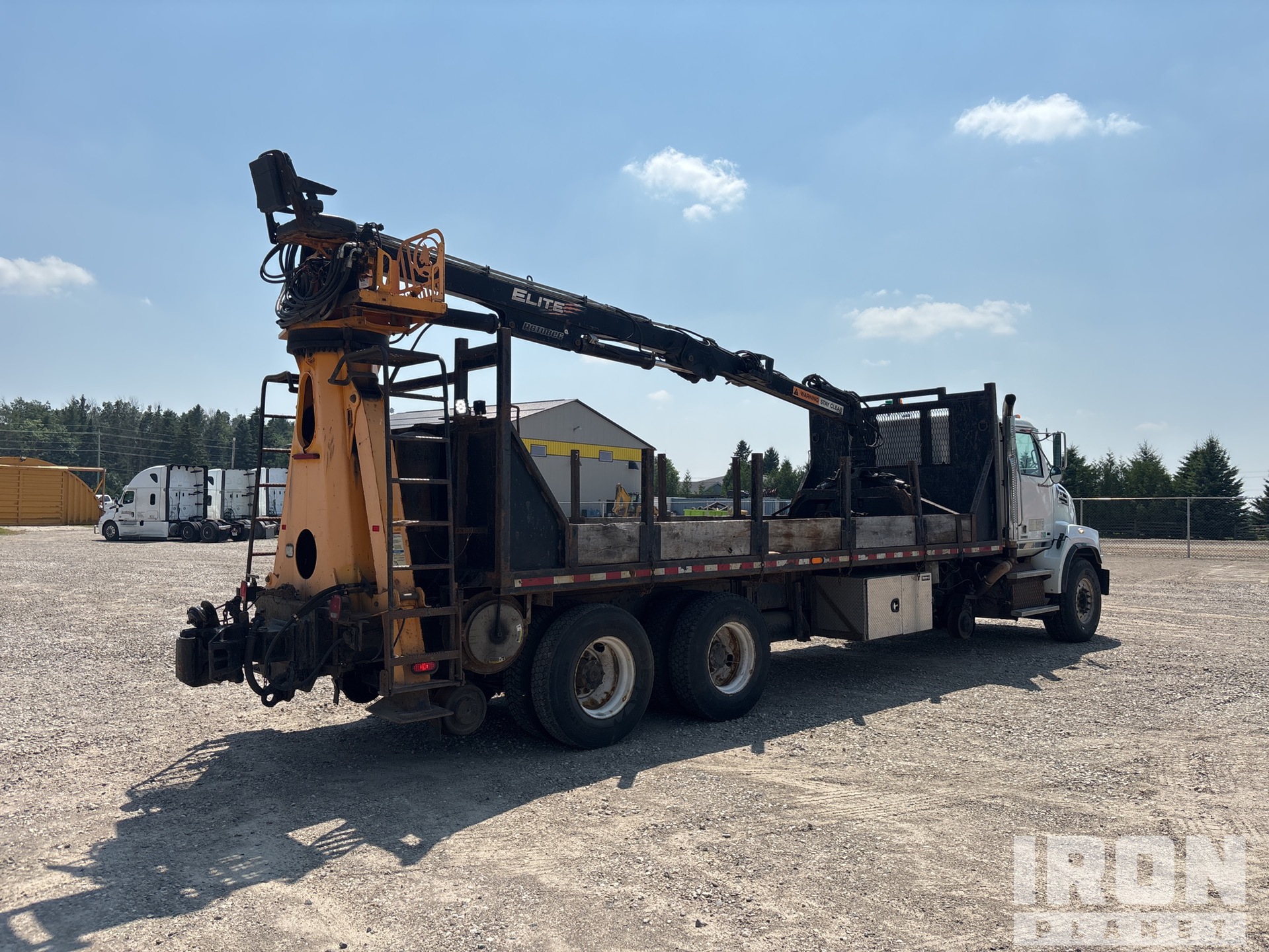

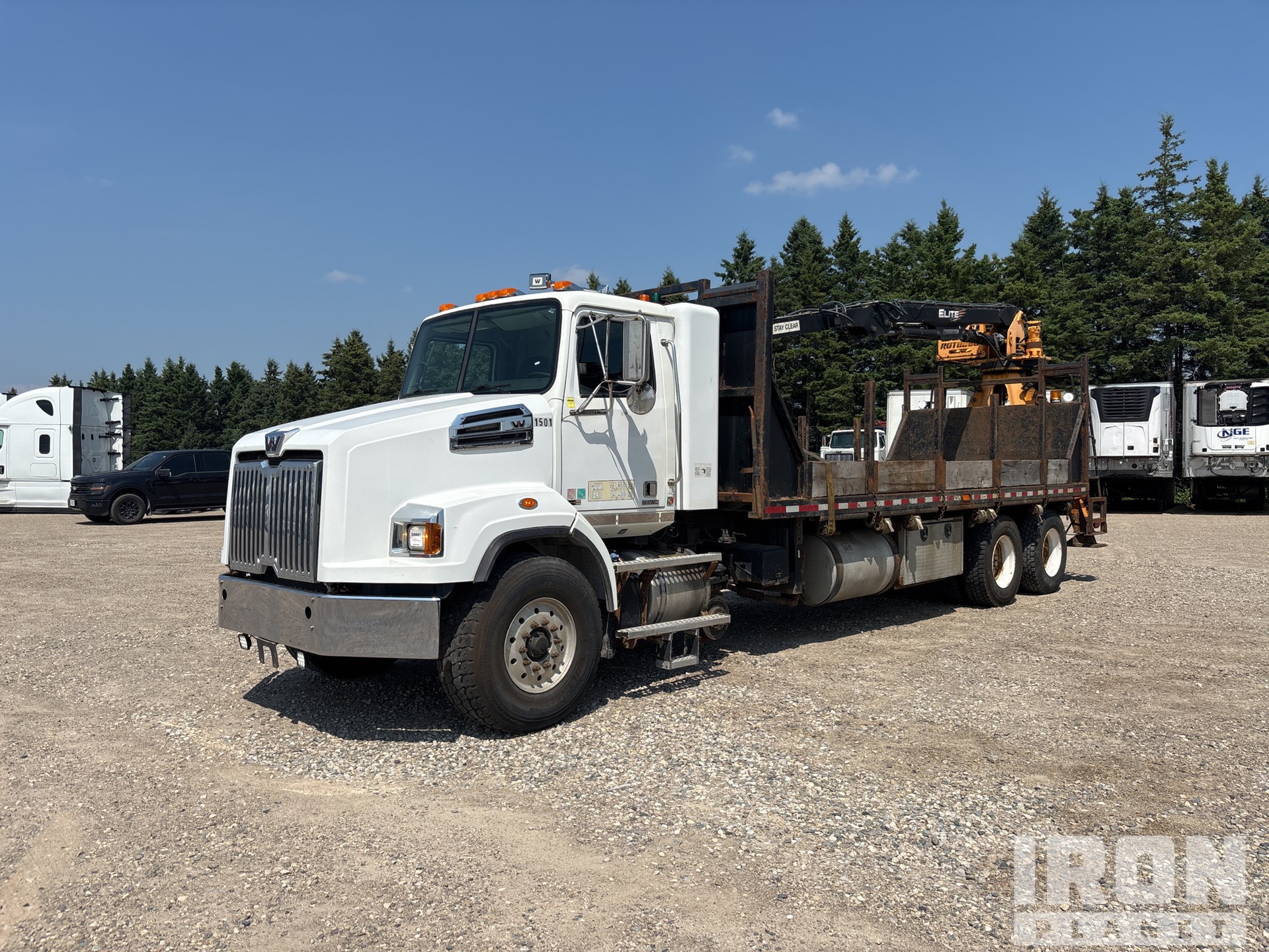

Rotobec Elite Knuckle Boom on 2015 Western Star 4700SB Roto RG 6x4 Grapple Truck
Located
Grand Valley, ON, CAN
Grand Valley, ON, CAN
Usage
220,616 km (137,085 mi)
220,616 km (137,085 mi)
Serial number
5KKHAXDV6FPGC3148
5KKHAXDV6FPGC3148
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15161631
In yard
No
Features
Detroit DD13 6 Cylinder 12.8 L Diesel 410 hp Engine, 2014 US EPA Label, Requires Diesel Exhaust Fluid, 12034 Engine hrs, Engine Brake, Eaton Fuller FRO-14210C 10-Speed Manual Transmission, Triple Differential Locks, 20000 lb Front Axle, 46000 lb Rears, Meritor RT-46-164PEH Drive Axles, 4.89:1 Axle Ratio, 66000 lb GVWR, Air Ride Cab, Aluminum Front Wheels, 425/65R22.5 Front Tires, 11R22.5 Rear Tires, Dual Steering Boxes, Double Frame, Airliner Air Ride Suspension, 295 in Wheelbase, PTO, Rear Mounted, 13 ft - 21 ft 2 Section Boom, A-Outriggers, 23 ft x 100 in Bed, Pintle Hitch, Hi-Rail System. Electro Magnet
General Appearance
Featured Photo
Serial Number / VIN
5KKHAXDV6FPGC3148
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
220616 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet metal (fiberglass) condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights Functional
Operational
Engine
Emissions Status
2014 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Injector pump
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Side of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Cab
Engine Hours
12034 Engine hrs
Mirrors
Window Controls
Left Manual / Right Power
Seats/armrests
Seat belts
Operational
Steering Controls
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. 28 PSI
Engine Warning Lights
Operational, Check engine light stays on
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Operational
ECM Miles
137081 ECM mi
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational
PTO Pump
Operational
Frame Condition
Front Axle
Rear Axle
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
Suspension Springs/Hangers
Rusty
Suspension Bushings
Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Wet Kit Plumbing
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Skip
Support Frame
Hinge Points
Valves
Dripping leak
Hoses (Hydraulic)
Swing Motor
Not working.
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Right stabilizer without function.
Boom Condition
JIB Condition
Turn-table Bearing
Stabilizer Beams
Stabilizer Controls
No response from controls to right stabilizer.
Control Console
Hydraulic Controls
No response from right control joystick.
Limited Function Check
The hydraulic system was partially functioning.
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Jul 31, 2025 | Jul 31, 2025 |
| Silicon | 7.08 PPM | 1.6 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 36.71 PPM | 0.42 PPM |
| Chromium | 2.98 PPM | 0.76 PPM |
| Lead | 0 PPM | 0.05 PPM |
| Copper | 5.85 PPM | 21.82 PPM |
| Nickel | 0.51 PPM | 0.19 PPM |
| Iron | 55.83 PPM | 4.78 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | N/A |
